Inertial & Monitoring Systems
Leading Exporters, Wholesaler, Trader and Distributor of 8 Vbox Systems, Brake Temperature Monitoring System, Ellipse 2 Micro Series Inertial Navigation System and Vbox Inertial Navigation System from Pune.
| Business Type | Exporter, Supplier, Trader, Distributor |
| Material | Aluminum |
| Power Source | Battery |
| Automation Grade | Semi Automatic |
| Application | Industrial Usage |
| Certification | CE Certified |
| Feature | Accuracy, Durable, Low Power Comsumption |
| Display Type | Digital |
| Type | Digital Data Logger |
| Warranty | 2Years |
| Number of channels | 8 |
| Frequency | 5-20Hz |
| Payment Terms | T/T |
Product Discription:
VBOX II SX (RLVB2SX) is a powerful instrument used for measuring the speed and position of a moving vehicle. It is based on a new generation of high performance satellite receivers, and will measure acceleration, braking distances, lap times, cornering forces and more. Due to its small size and simple installation, VBOX II SX is ideally suited for use in cars, bikes, off road vehicles and boats. With 5Hz, 10Hz, and 20Hz GPS update rate options available, the range suits a variety of requirements and budgets. All units are compatible with the DGPS Basestation for positional accuracy to
| Business Type | Exporter, Supplier, Trader, Distributor |
| Brand Name | Racelogic |
| Certification | CE Certified |
| Country of Origin | UK |
| Type | Brake Temperature Monitoring |
| Measurement Range | -20 °C To 950 °C |
| Accuracy | ±2.0% FS For -20°C < Tp < 85°C |
| Number Of Channels | 16 |
| Thermal Time Constant | 2 Ms |
| Spectral Range | 8 To 14 μm |
| Supply Current | 30 MA |
Product Discription:

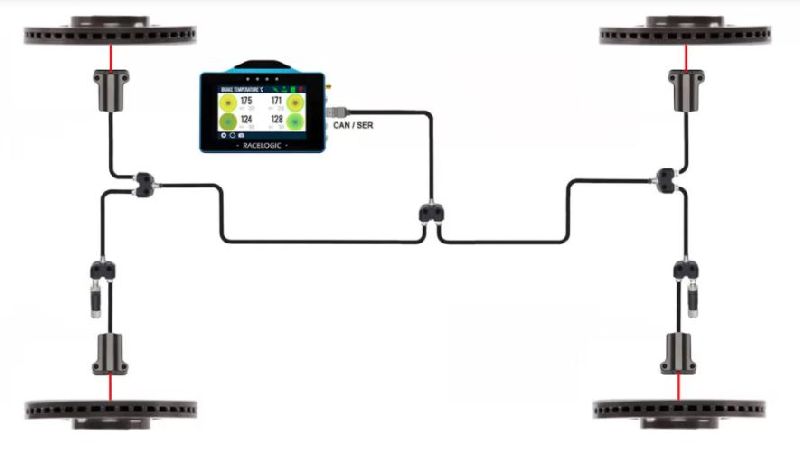

The RACELOGIC Brake Temperature Monitoring System measures, logs and displays the surface temperature of the brake disc, providing invaluable information to the test driver whilst on track
Technical Specifications
- Temperature Measurement Range: -20 °C to 950 °C
- Accuracy: ±2.0% FS for -20° C < Tp < 85° C
- Field of View (FOV): 60° x 8°
- Number of Channels: 16
- Thermal Time Constant: 2 ms
- Effective Emissivity: 0.01 – 1.00 (default = 0.55)
- Spectral Range: 8 to 14 μm
- Recommended Supply Voltage: 5 to 8 V
- Supply Current: 30 mA
| Business Type | Exporter, Supplier, Trader, Distributor |
| Driven Type | Battery |
| Color | Grey |
| Certification | CE Certified |
| Feature | Accuracy, Easy Insatallation, Low Consumption |
| Warranty | 2years |
| Type | Inertial Navigation System |
| Series | Micro |
| Accuracy | Highest |
| Sensor Size | Smallest |
Ellipse 2 Micro Series
- Highest Accuracy, Smallest Sensor The Ellipse 2 Micro Series is a compact, high-performance Inertial Measurement Unit (IMU) designed for precision in motion sensing. It features 3 gyroscopes, 3 accelerometers, 3 magnetometers, and a temperature sensor within an ultra-small form factor.
- Ellipse 2 Micro IMU: Delivers raw inertial data for accurate motion tracking.
- Ellipse 2 Micro AHRS: Integrates an Extended Kalman Filter to provide reliable Roll, Pitch, Heading, and Heave data.
- Ellipse 2 Micro INS: Combines with GNSS and an odometer to offer full navigation capabilities in dynamic environments.
- Ideal for applications requiring high accuracy, low weight, and compact size—such as robotics, UAVs, autonomous vehicles, and defense systems.
| Business Type | Exporter, Supplier, Trader, Distributor |
| Country of Origin | UK |
| Warranty | 1year |
| Feature | Accuracy, Easy Insatallation, Easy To Use |
| Application | Vehicle Brake Testing |
| Type | Gps Data Loggers |
| Certification | CE Certified |
| Product Code | Inertial Navigation System |
Product Discription:

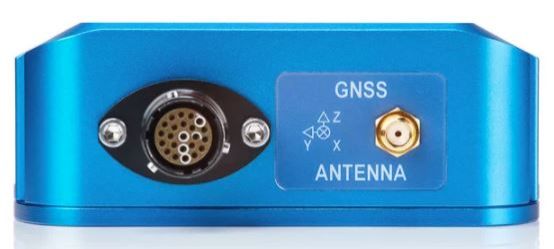

inertial navigation system - vbox3i s technical specifications gyroscopes (angular rate sensors)*
- dynamic range: ±450°/s
- nonlinearity: 0.01% fs
- resolution: 16 bit adc (0.014°/s)
- bandwidth: 50 hz
- noise density: 0.01 °/s/√hz
- bias stability: ±0.003 °/s
- bias repeatability (1 year): 0.2 °/s
accelerometers
- dynamic range: ±20 g
- nonlinearity: 0.1 % fs
- resolution: 16 bit adc (0.15 mg)
- bandwidth: 50 hz
- noise density: 60 µg/√hz
- bias stability: 15 µg
- bias repeatability (1 year): 0.005 g
