Communication Interfaces
Leading Exporters, Wholesaler, Trader and Distributor of USB Muxdiag 2 Vehicle Communication Interface For Can and Vci Muxdiag 3 Vehicle Communication Interface from Pune.
| Business Type | Exporter, Supplier, Trader, Distributor |
| Color | Black |
| Application | Vehicle Communication |
| Type | Communication Interface |
| Warranty | 2years |
| Certification | CE Certified |
| Feature | Auto Controller, Durable, High Performance |
| Driven Type | Battery |
| Connectivity | 1 CAN High Speed Or Low Speed Link |
| Connector Type | 16-channel OBD SAE J1962 |
| Supported Manufacturers | Peugeot,Citroen,Renault,Ford |
| Port | France |
| Payment Terms | T/T |
| Delivery Time | 8 weeks |
Product Discription:
The USB-MUXDIAG-2 (Evo) is a compact communication interface which is particularly well suited to the vehicle environment. It has 1 CAN High Speed or Low Speed link, 1 CAN High Speed link, 2 ISO9141 links, 2 LIN links and 2 ANA/DIG inputs. The range of pinout options on the 16-channel, "OBD" SAE J1962 connector, controlled by the allocation of the non-standardized channels, is covered by several versions of the AMUX-AEE adapters, each of which is tailored to the various manufacturers: PEUGEOT, CITROEN, RENAULT and FORD.
| Business Type | Exporter, Supplier, Trader, Distributor |
| Application | Industrial Use,Analysis And Diagnosis Of Electronic Architectures In Vehicles |
| Certification | CE Certified |
| Features | 1x CAN FD High Speed channel |
| Type | Communication Interface |
| Interface | USB2.0 High Speed Link |
| Channels | 1x |
Product Discription:

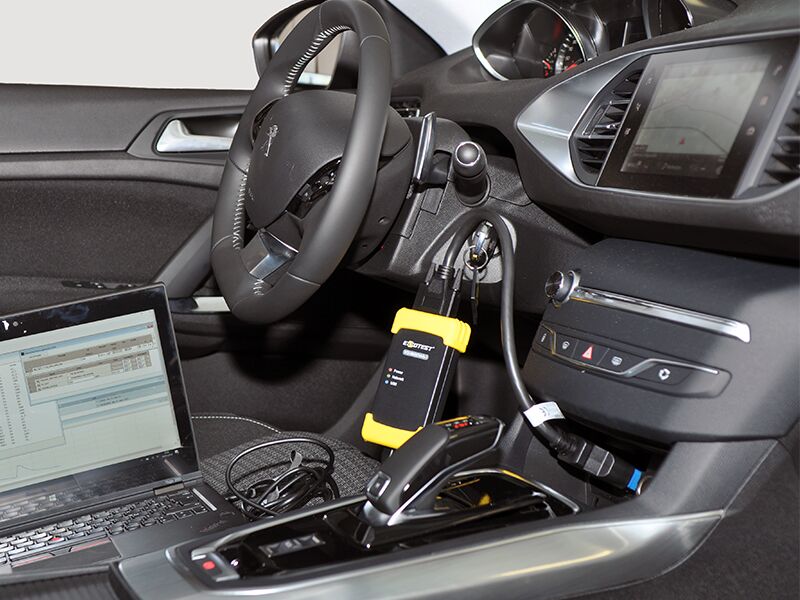

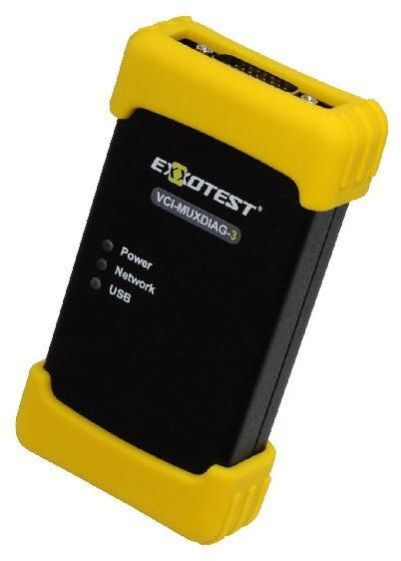

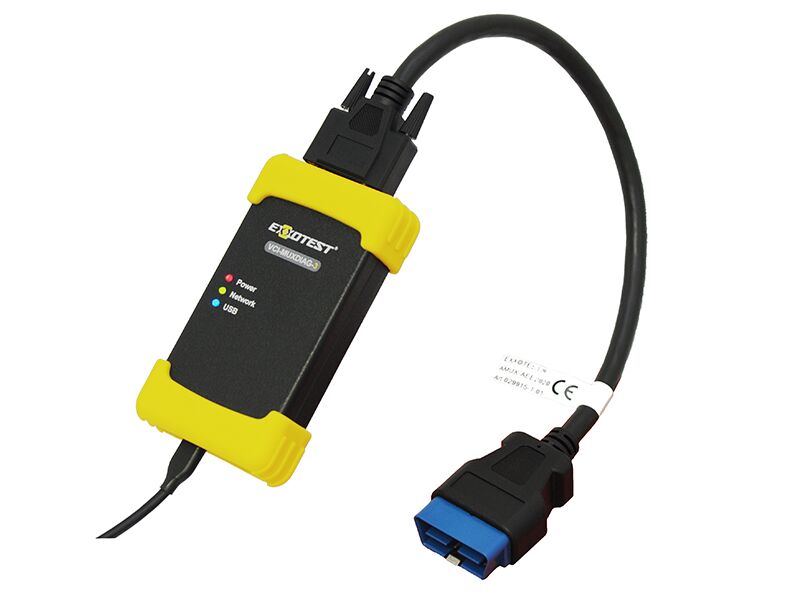

VCI-MUXDIAG-3 is a compact multi-protocol communication interface particularly suited to the analysis and diagnosis of the electronic architectures equipping the most recent vehicles and mobile machines.
It allows to interface, via a USB2.0 high speed link, a PC-type computer to communicating systems and networks of systems.
- 1x CAN FD / High Speed channel
- 1x CAN FD / High Speed or CAN Low Speed channel
- 1x Ethernet (DoIP) or BroadR-Reach® channel
- 1x LIN channel + 1x LIN or ISO9141 K/L channel
